The compact M1 Class consists of single-headed, positive displacement piston pumps that deliver high-performance and precision at an affordable price. Superior to Gear, Diaphragm, and Peristaltic pumps, the M1 Class provides greater performance at an equivalent cost to lesser-functioning products.

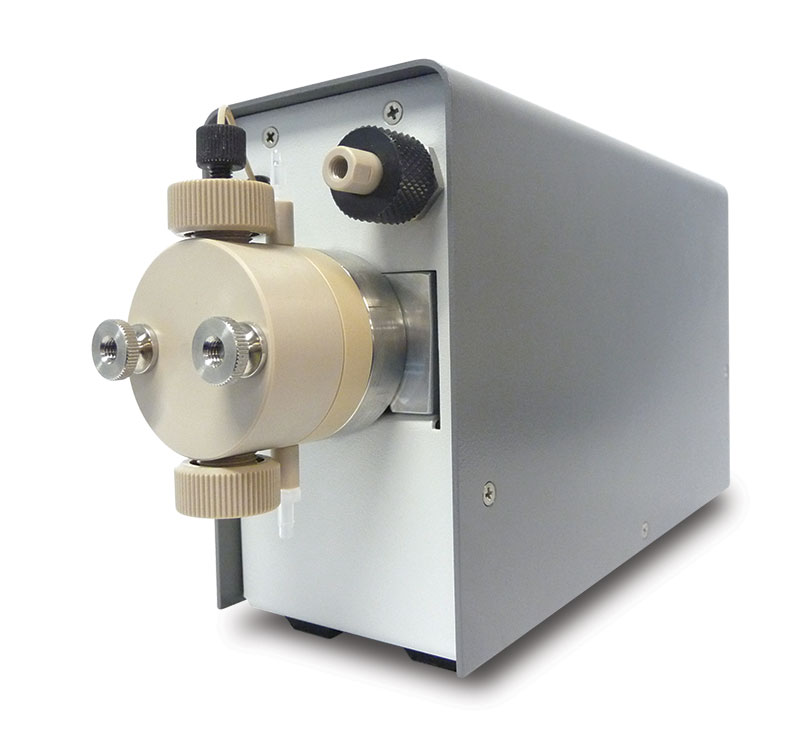

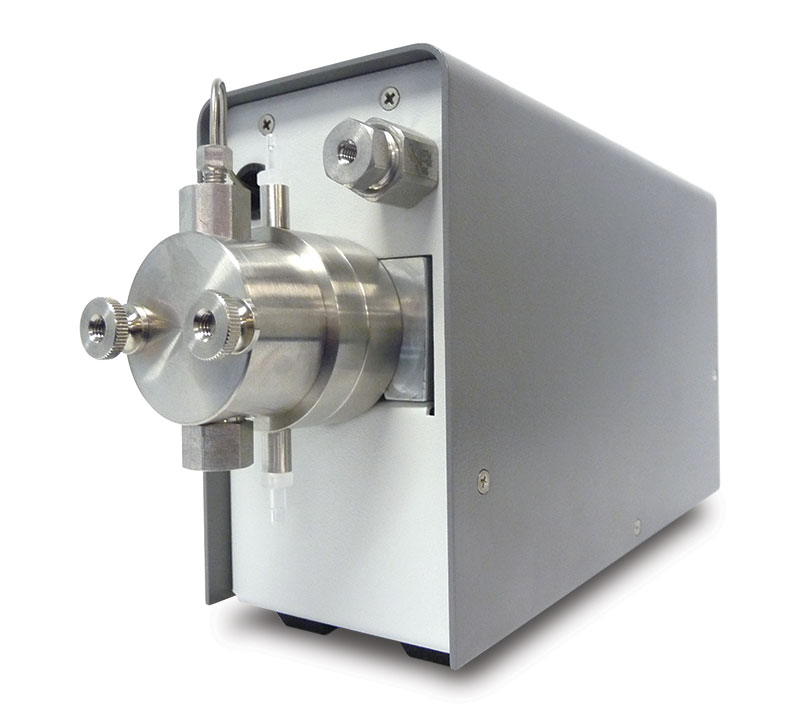

Applications include precise chemical metering, dispensing and specific HPLC separations. Standard fluid path materials are Stainless Steel and PEEK. With 10 mL/min, 40 mL/min, and 100 mL/min versions, reaching pressures up to 2,000 psi, these pumps capture the majority of typical laboratory fluid transfer applications.
Features include interactive keypad control, Pulse Dampener and Outlet Filter, RS-232 Serial and Micro USB 2.0 ports for complete PC control and status, as well as hardware for laboratory stand mounting. Having the smallest possible footprint for a high pressure pump, the M1 Class will easily integrate into any laboratory or industrial environment.
| Flow Rate | Pressure | Fluid Path | Control |
|---|---|---|---|
| 10 mL/min 40 mL/min 100 mL/min |
Up To 2,000 psi (10 ml/min) |
Stainless Steel PEEK or Titanium |
RS-232, Micro USB |
M1 Class Specifications
| Flow Rate and Max Pressure Ratings* | 0.00 -10.00 ml/min (2,000 psi) 0.0- 40.00 ml/min (500 psi) 0.0 – 100.00 ml/min (250 psi) |
| Flow Precision | 1% RSD |
| Flow Accuracy | Within 2% of set flow rate, 0.20 mL/min and above; 80:20 Water/IPA @ 1,000 psi (10 mL) Within 5% of set flow rate, 0.8 mL/min and above; 80:20 Water/IPA @ 100 psi (40 mL) Within 5% of set flow rate, 2 mL/min and above; 80:20 Water/IPA @ 100 psi (100 mL) |
| Wetted Materials | (Options), Synthetic Ruby, Sapphire, UHMWPE, PTFE |
| Dimensions | 5.5” H x 3” W x 10.5” D (14 x 7.6 x 26.7 cm) |
| Weight | 3.5 lbs. (1.6 kg) |
| Power | External Power Supply; To Supply: 100-240 Vac, 50-60 Hz, 1A; Supply to Pump: 24VDC, center positive, 2.1 mm post, 1.7 AMP |
| Control | RS-232, Micro USB |
* Flow Rate is dependent on solvent selection and operating pressure.
