The reliable LS Class consists of single-headed, positive displacement piston pumps incorporating advanced cam designs for very low pulsation. With micro-stepping motor technology and a proven single-piston pump mechanism, the LS Class exceeds the performance of more expensive units at a fraction of the cost.

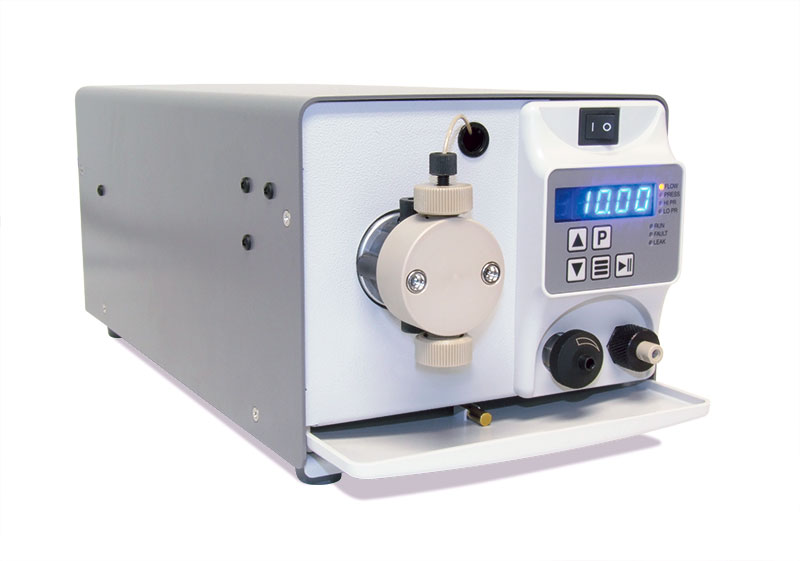

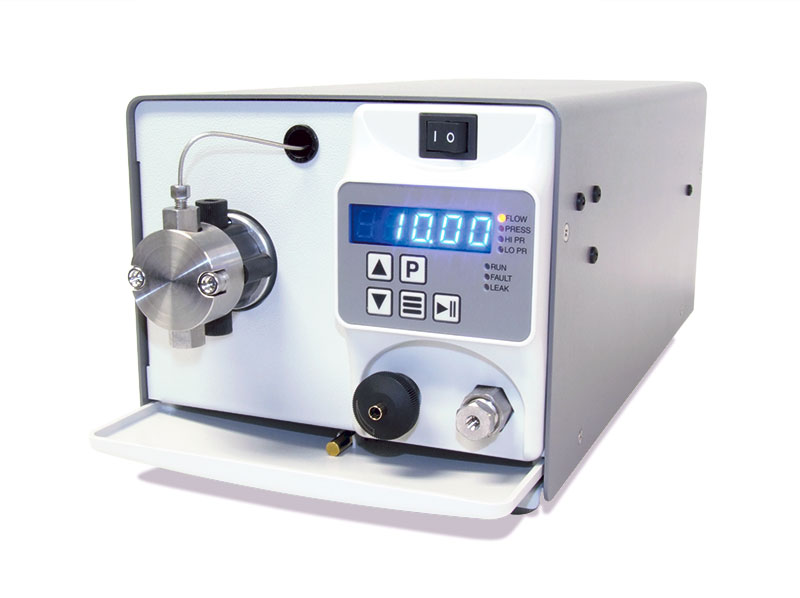

The pumps are ideal for a wide variety of HPLC applications (including Biocompatible separations), Semi-Prep LC, metering & dispensing, and general laboratory use. Standard fluid path materials are Stainless Steel and PEEK, in addition to optional Titanium. Other available features include jacketed heads for temperature controlled processes. With 5 mL/min, 10 mL/min, and 40 mL/min versions available, and pressure capability up to 6,000 psi, these versatile pumps will meet the most demanding applications.
Features include automatic pressure compensation, Pulse Dampener, integrated Prime-Purge Valve, interactive keypad control, and complete PC control and status through RS-232 and Micro USB 2.0 ports. The unique LS Class provides the highest performance/cost ratio in a compact package.
| Flow Rate | Pressure | Fluid Path | Control |
|---|---|---|---|
| 5 mL/min 10 mL/min 40 mL/min |
Up To 6,000 psi (5 ml/min or 10 ml/min) |
Stainless Steel PEEK or Titanium |
RS-232, Micro USB Voltage Flow Control Run/Stop |
LS Class Specifications
| Flow Rate and Max Pressure Ratings* | 0.000 -5.000 ml/min (6,000 psi) 0.00- 10.00 ml/min (6,000 psi) 0.0 – 40.00 ml/min (1,600 psi) |
| Pulsation** | ≤2% @ 1 mL/min and 1,000 psi |
| Pressure Accuracy | +/-2% of full scale pressure |
| Flow Precision | 0.2% RSD |
| Flow Accuracy | Within 2% of set flow rate, 0.20 mL/min and above; 80:20 Water/IPA @ 1,000 psi (5 mL and 10 mL) Within 2% of set flow rate, 0.80 mL/min andabove; 80:20 Water/IPA @ 1,000 psi (40 mL) |
| Wetted Materials | (Options), Synthetic Ruby, Sapphire, UHMWPE, PTFE |
| Dimensions | 6.5” H x 7” W x 16” D (16.5 x 17.8 x 40.6 cm) |
| Weight | 15.3 lbs. (6.9 kg) |
| Power | 100-240 Vac (± 10%), 50-60 Hz |
| Control | RS-232, Micro USB, Voltage Flow Control, Run/Stop |
* Flow Rate is dependent on solvent selection and operating pressure. ** Pulsation value with pulse dampener.
